Longspan medium duty shelving


Description

Description

Longspan medium duty shelvingLongspan medium duty shelving is a durable, versatile and economical shelving system. It doesn't require any special tools for installation because it's bolt-free lock-in system. And the load capacity can up to maximum 500kg/level.

The system supply an idea solution for wide application to auto, factories, warehouse, retails and wholesales, ranging from small components to big volume or irregular goods to give you maximum storage of your warehouse.

Longspan shelving specification:

1. Material: High quality Q235.

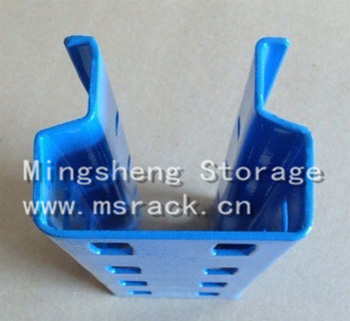

2. Uprights section size with “Ω”shape, more intensive structure! : 55*47*1.5/1.8mm. 50mm pitch for height adjustment.

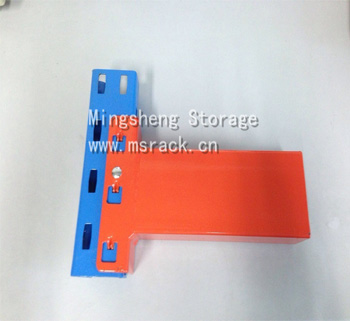

3. Step beam size with "P" shape : P60*40*1.5mm/P80*50*1.5mm/P110*50*1.5mm

4. Load capacity: can up to maximum 500kg/level

5. General size:
Length: 900/1200/1500/1800/2100/2400
Depth: 600
Height: 1500/1800/2000/2200/2500
Layers of beam: 3~6 layers
Size can be customized!

6. Surface treatment: Play steel sand to intensify the structure, Electrostactic powder coating. orange, blue, yellow, other color is available
